| model | SQ6.3KZ2Q/K3Q | SQ8ZK3Q | SQ10ZK3Q | SQ12ZK2Q/SQ2ZK1 |
| Max lifting capacity(kg) | 6300 | 8000 | 10000 | 12000 |
| Max lifting moment(T.M) | 13.23 | 16 | 20 | 30 |
| Recommend power needed at recommend oil flow(kW) | 28 | 28 | 28 | 32 |
| Max oil flow of hydraulic system(L/min) | 25 | 40 | 40 | 55 |
| Rate pressure of hydraulic system(Mpa) | 28 | 28 | 28 | 40 |
| Oil tank capacity(L) | 90 | 140 | 140 | 220 |
| Rotation angle(°) | All rotation | All rotation | All rotation | All rotation |
| Crane weight(kg) | 2115 | 2970 | 3477 | 4130 |
| Installation space | 1050 | 1150 | 1150 | 1400 |

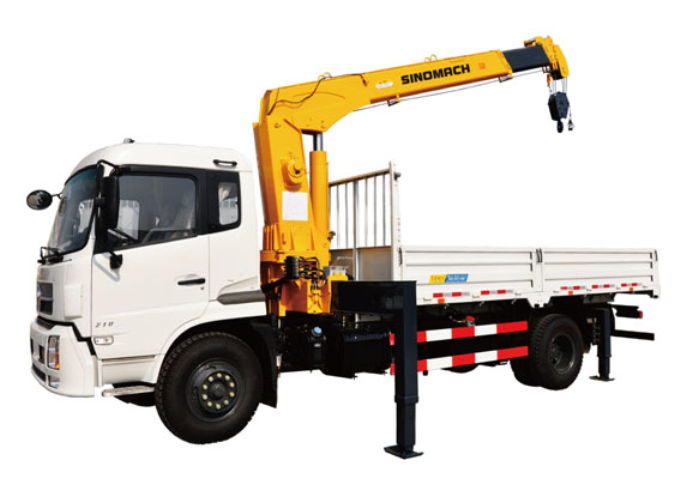

Product introduction
The truck mounted crane is a kind of heavy engineering equipment which employs a hydraulic lifting system and a telescopic system to achieve the lifting,rotation and transportation of goods.Our truck crane mainly consists of the truck chassis,cargo compartment,power takeoff,and the hoisting mechanism.
